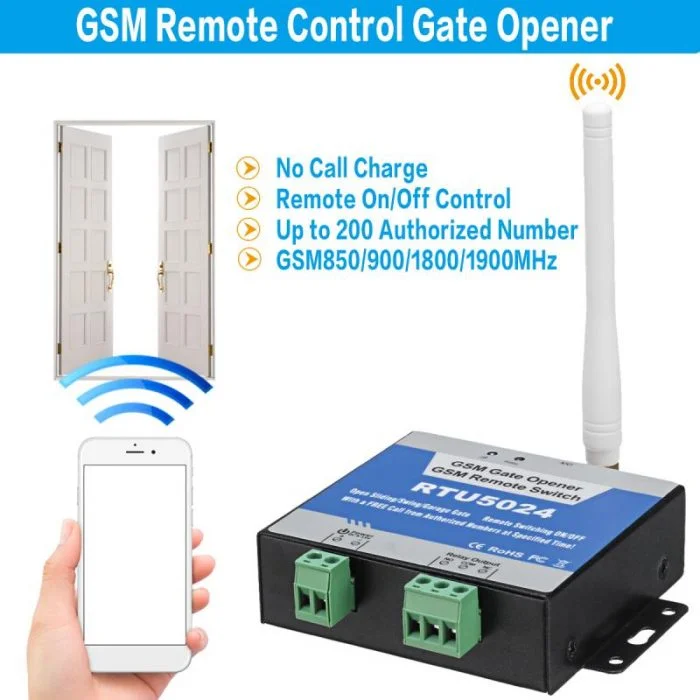

GSM Gate Opener Remote Switch RTU5024

The GSM Gate Opener Remote Switch RTU5024 is a powerful GSM relay that can be used for authorized door access, controlling gates, switching of remote equipment, and car parking systems. Additionally, it can also be used in places which require you to turn on/off your system, machines, or equipment remotely with a free call from your mobile phone.

Authorized 200 users open gate at the specified time!

GSM Gate, Barrier, Shutter, Garage Door and Door opener

Open gate or garage door with a FREE call from your mobile phone!

Remote switching machines ON/OFF with a FREE call from your mobile phone!

Remote monitoring the Gate, Barrier, Shutter, Garage Door OPEN/Close Status!

Features:

1. Add or remove users by SMS Text com mand.
2. The relay close or open time is programmable.
3. Can be operated from anywhere, no distance limit.
4. Quad-band, can work in the worldwide GSM Networks.
5. No need to provide a remote control or keys for different users.
6. Secure – Using caller-ID for identification, unknown callers are ignored.
7. Up to 200 authorized phone numbers can be configured at the specified time.
8. One output with relay rating 3A/240VAC for connecting the switch of the door or machines.
9. Multiple applications. (gates, bollards, barriers, garage doors, shutters and access doors or machines).
10. The relay action will return a SMS confirmation to the owner or authorized call in number, this function is editable by user.
11. No call charges. the GSM GPRS Relay Switch rejects the call from authorized number then carries out the turn ON/OFF action on the first ‘ring’.

Specifications:

GSM Frequency: Quad-band 850/900/1800/1900MHz
Gigital Output: NC/NO dry contact, 3A/240VAC
DC Power Supply: 9-24VDC/2A
Power Consumption: 12V Input Max.50mA/Average 25mA
SIM Card: Support 3V SIM Card
Antenna: 50Ω SMA Antenna Interface
Temperature Range: -20~+60℃
Humidity Range: Ralative Humidity 90%
Exterior Dimension: W82mm*D76mm*H27mm

Package Included:

1 x RTU5024 GSM Gate Opener
1 x Good Gain Antenna

Enerna IoTech GSM Wireless Remote Sliding Gate Door Opener Relay Switch RTU5024

Description

The GSM Gate Opener/Relay Switch RTU5024 is an powerful GSM Relay, it is a very simple device which can be used for authorized door access, controlling gates, switching of remote equipment, car parking systems. Actually the GSM Gate Opener/Relay SwitchRTU5024 can be used in places which require to turn ON/OFF your system, machines, equipment remotely with a FREE call from your mobile phone.

Just dial from Authorized User number at the specified time then the Barrier and doors are opened, or the machine are turn on or off by the GSM Gate Opener/Relay Switch. There are no call costs, the GSM Gate Opener/Relay Switch rejects the call from authorized number then carries out the turn ON/OFF action.

Moreover, the user can be authorized at the specified time to operate it, after timeout, will automatically change to unauthorized type.
The RTU5024 is very suitable for remotely monitoring outdoor cabinets and stations of telecom company, traffic origination, power supply company and so on. It can be authorized different repair person or maintains person to open the cabinets or stations at the specified time, saving time to get the keys for the locks and saving cost to repair or replace the locks while the person lost the key. And also can remote monitoring the door is opened or closed, or illegal opened.

Applications:
– Remote open/close swing/sliding gates, doors, shutters, garage doors,locks with a free call!
– Residential: Door,gate,garage access control, electronic fan,microwave,air-conditioner control.
– Industry: Remote switch equipment, for example: street lights, solar power, motor, inverter, PLC, pumps, fans, etc.
– Agriculture: Remote control pumps, etc.
– Business: Remote control electronic boxes,bright billboards,LED signs,etc.

Document download:

GSM Gate Opener Remote Switch RTU5024 User Manual V3.0
