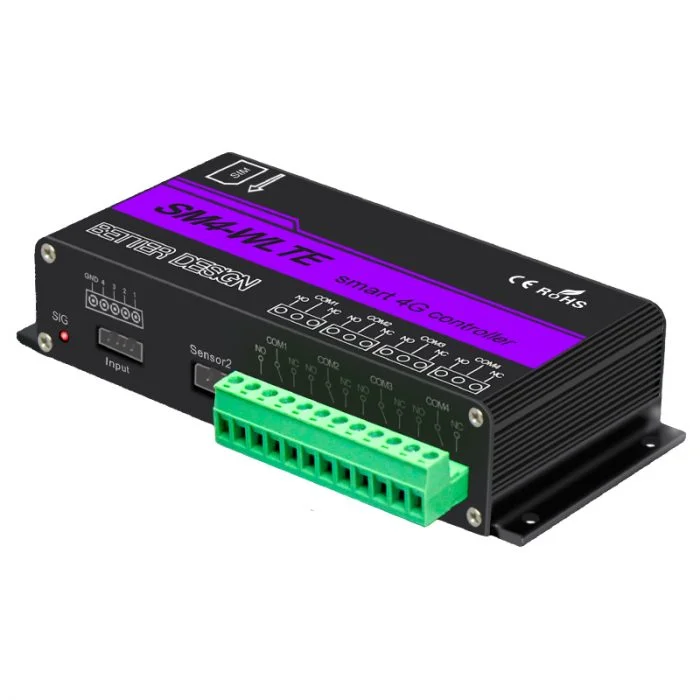

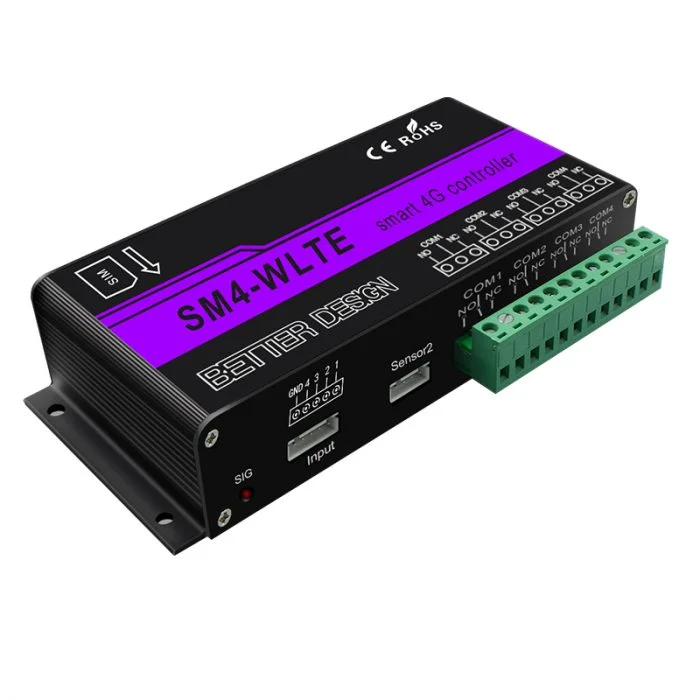

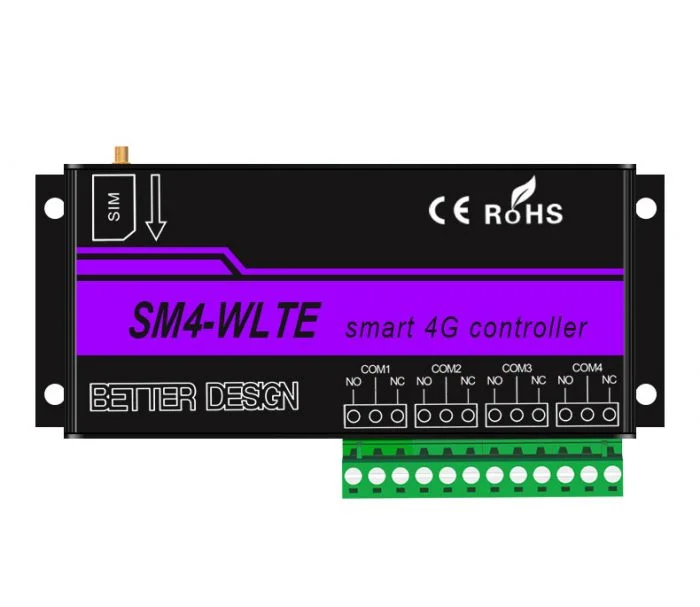

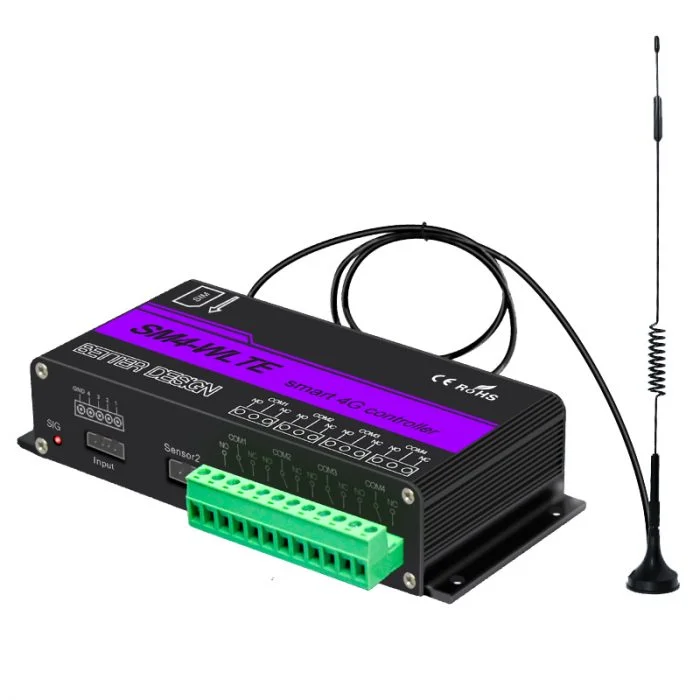

Cellular 4G LTE IoT RTU Temperature Humidity Alarm Controller SM4-4G

Description

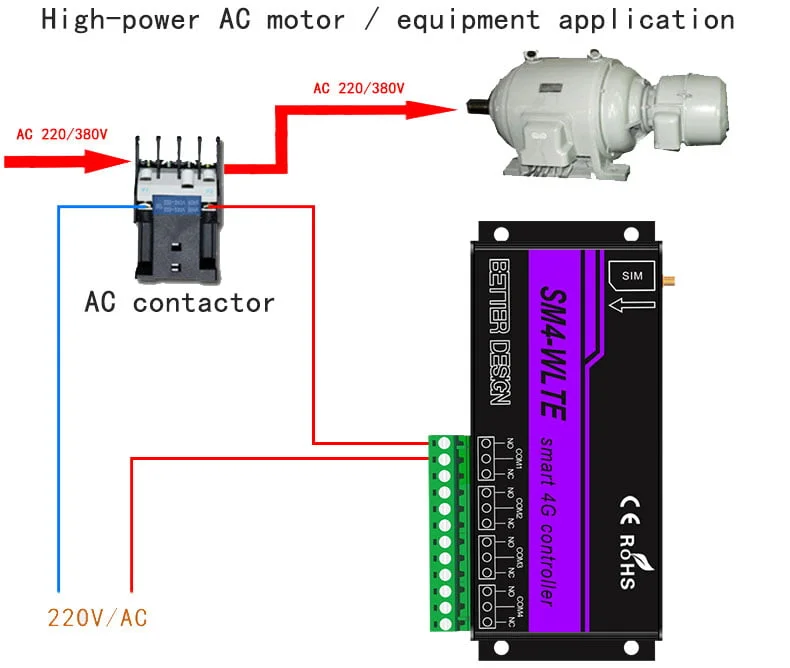

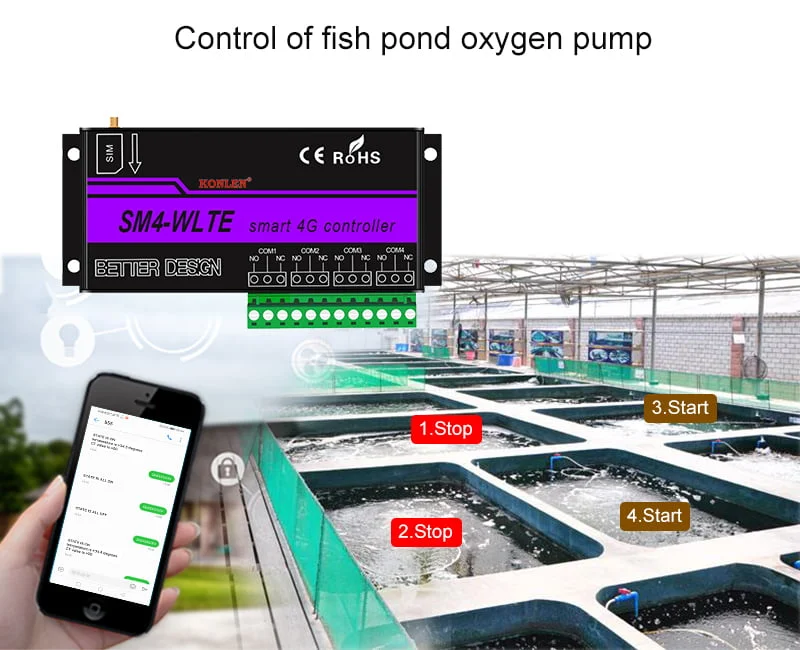

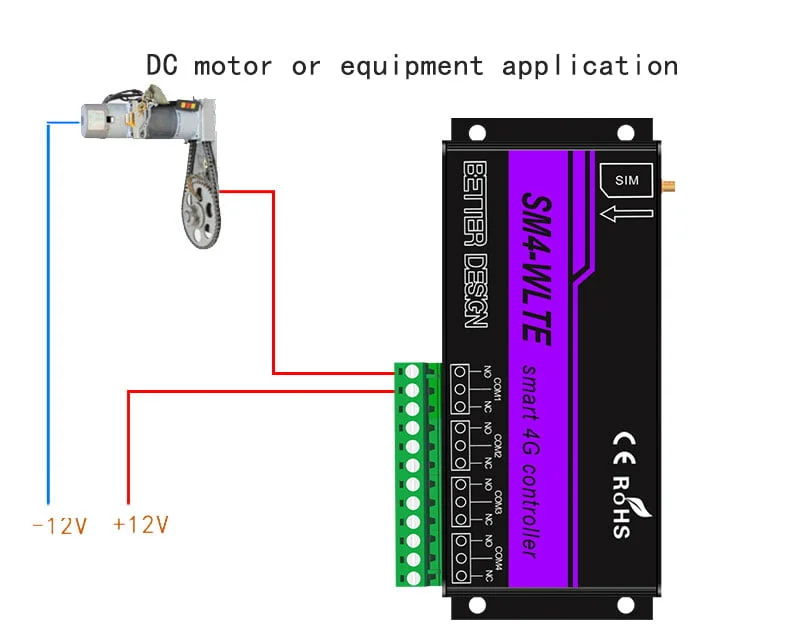

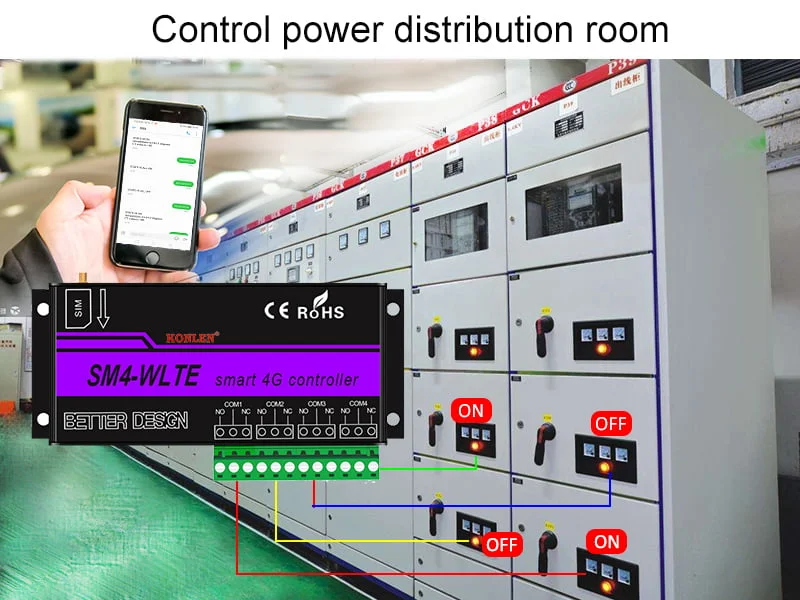

Cellular 4G LTE IoT RTU Temperature Humidity Alarm Controller. It can be controlled by SMS mode or 4G Data Network Mode. The 4G switch controller support wide applications, such as access control system, pump motor controlling, smart light fan switch, generation room monitor control…

Features:

1. Remote Control, no distance limitation
2. Dial Control first relay, SMS control 4 relays
3. 4G Data network Remote Control Via App
4. With 4 relay output (10A/30VDC, 10A/250VAC)
5. Support Temperature/Humidity Control

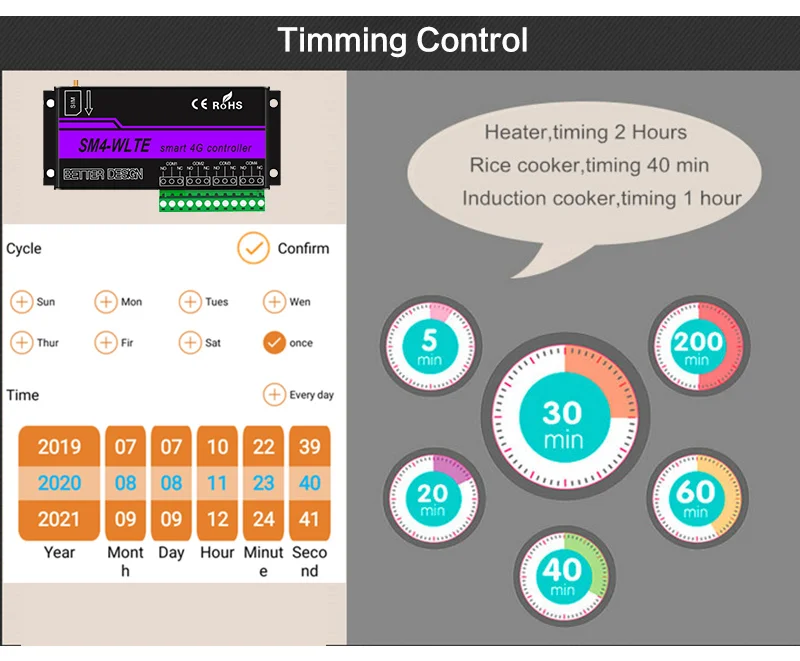

6. Scheduled/Timing Control
7. Industrial class design, Aluminum alloy material

Cellular 4G LTE IoT RTU Temperature Humidity Alarm Controller can be controlled by two modes, SMS mode or 4G Data Network Mode. The default is SMS mode. If want 4G data network App control mode, please set APN first before use.

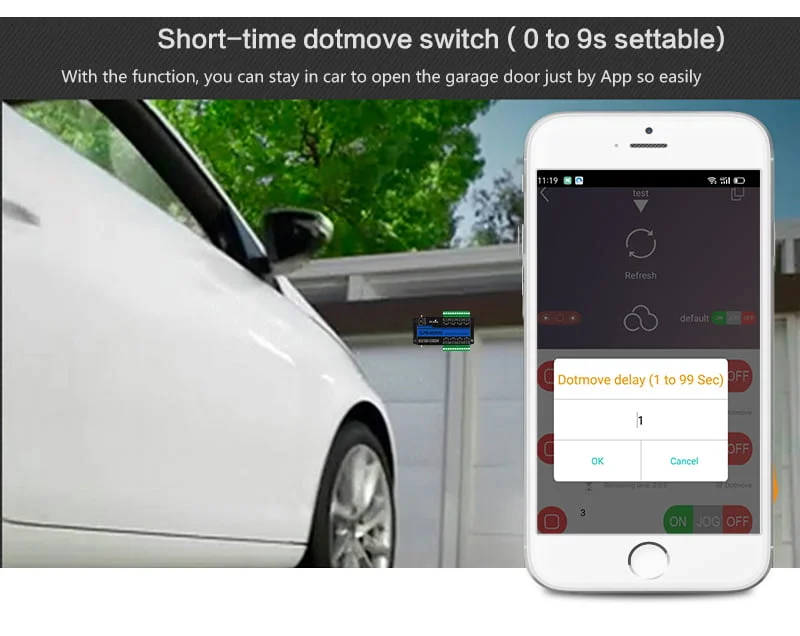

Application: 4 Channels support to control more devices, you can control all channels at the same time and you can also control each relay separately. Cellular 4G LTE IoT RTU Temperature Humidity Alarm Controller was widely used in farm, hennery, machine room, electric garage door etc.

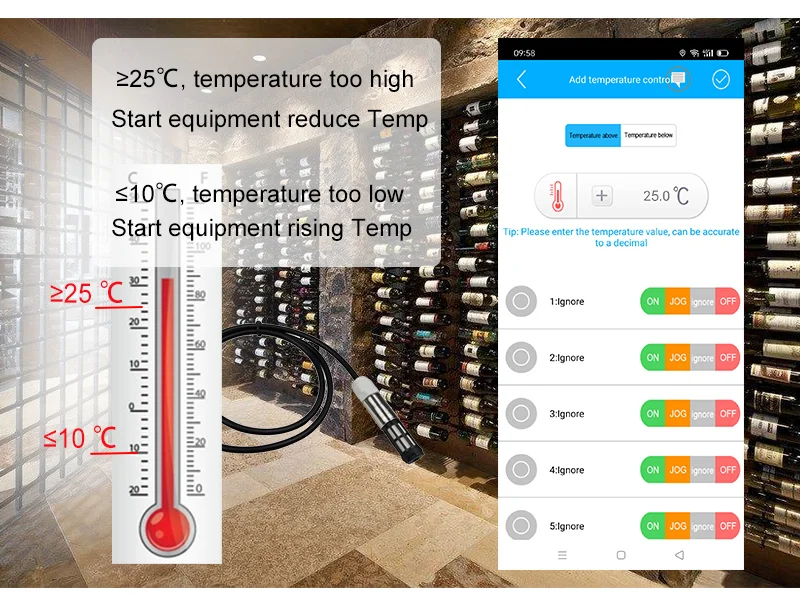

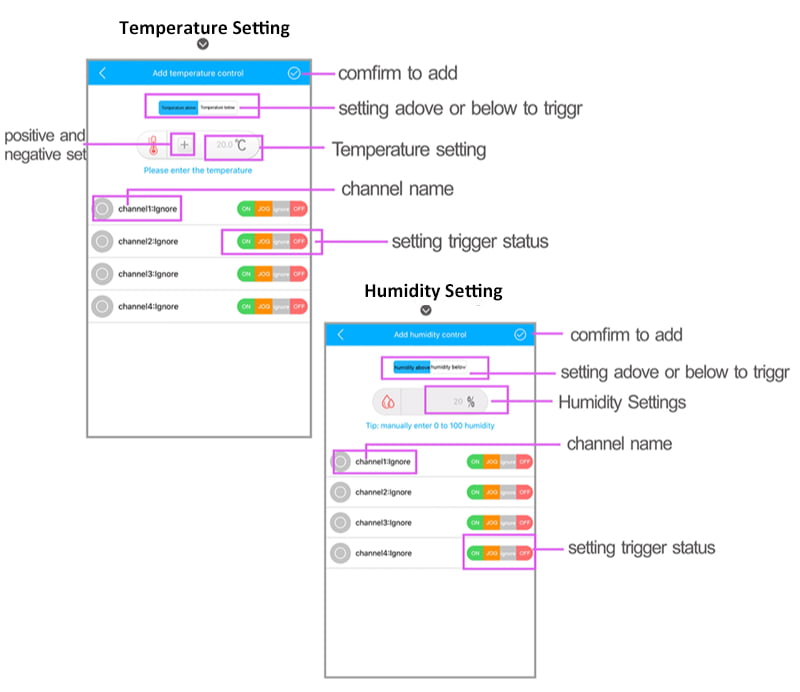

Cellular 4G LTE IoT RTU Temperature Humidity Alarm Controller Temperature & Humidity Control function: If the temperature(humidity) is less than (more than ) the tempeareture (humidity ) you set , the device will switch on/off automatically as you required . For example: If you need the device to work automatically when the device less than ( more than ) a certain temperature /humidity , you can use this function.

Specifications:

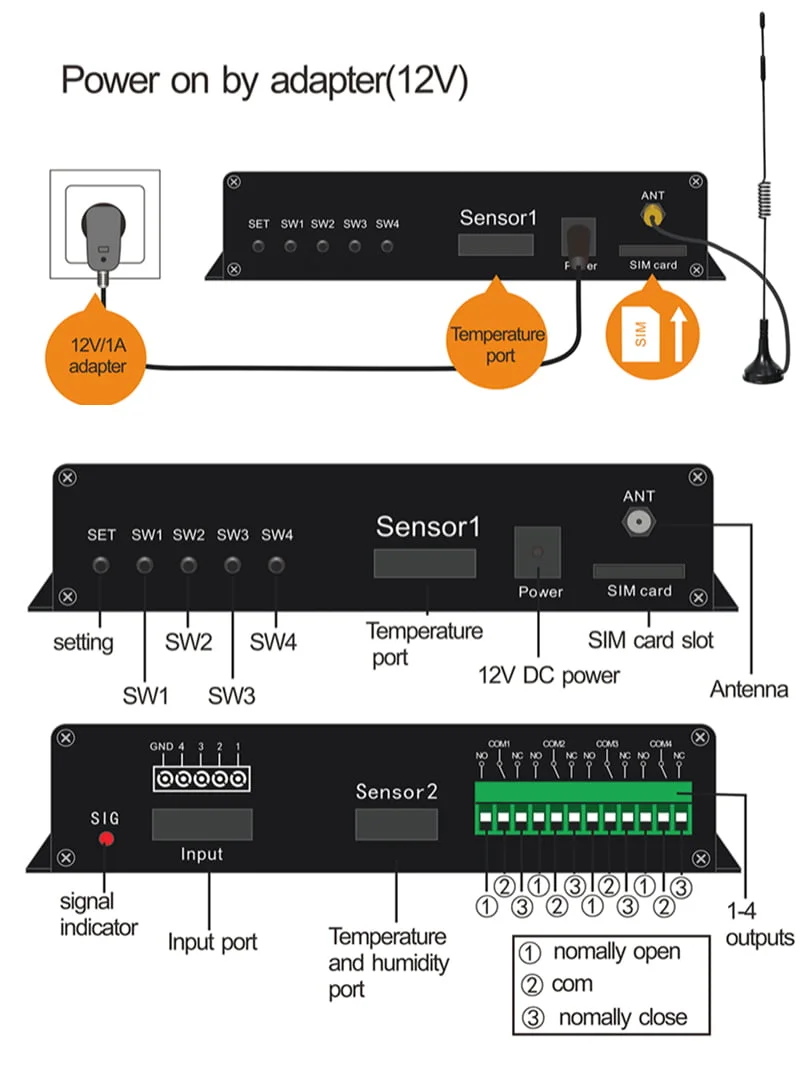

DC power supply: standard adapter DC12V/500mA or 1A, Range 9 to 12V.
Power consumption: standby 12V/500mA, working Max: 12V/200mA
TDD-LTE: B34/B38/B39/B40/B41
FDD-LTE: B1/B3/B5/B8
GSM/GPRS/EDGE: 900/1800mhz
SIM Interface: Support 3V micro SIM Card
External Antenna: SMA Antenna interface, 50 ohm, Ga in 6DB

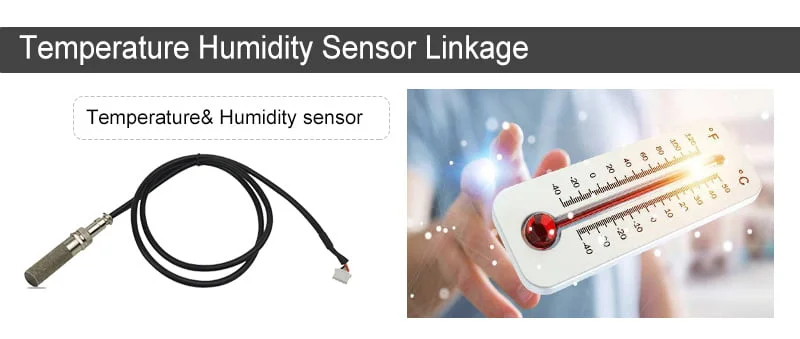

Two sensor interfaces.
Sensor 1 interface: for connecting temperature sensor
Sensor 2 Interface: for connecting temeprature and humidity sensor
Sensor cable length: 1 meter
Humidity Detection range: 0 to 100%
Temperature detection: range: -40 to +110 centigrade

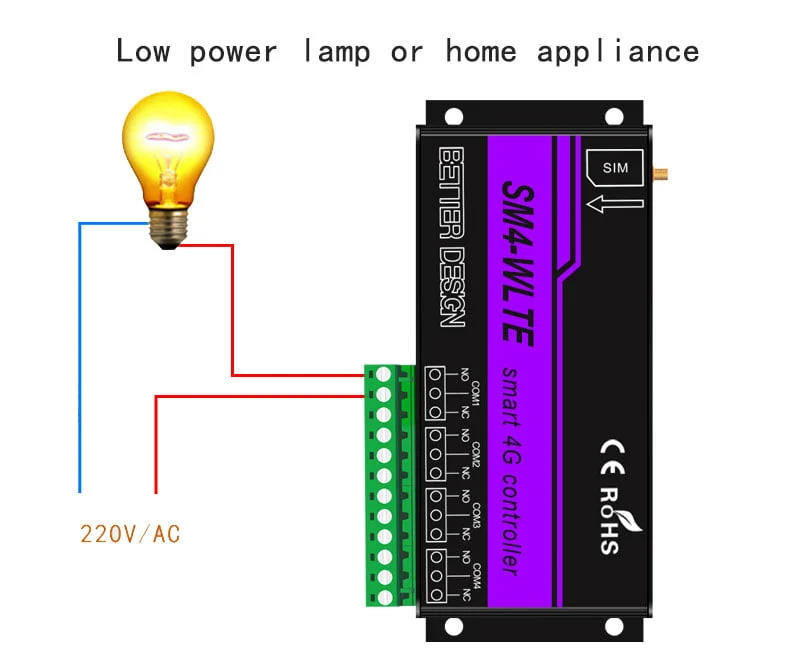

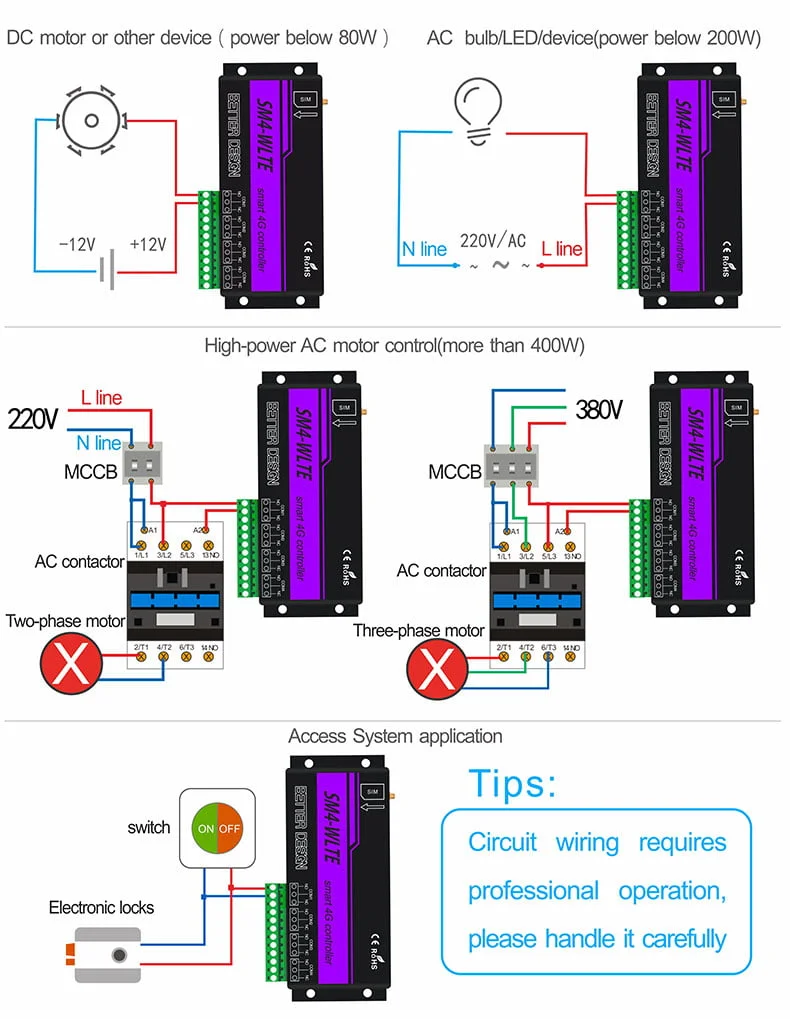

Relay Outputs: 4 Channels, 10A/30VDC, 10A/250VAC
Output logic: normal open and normal close.

Applications:

Enerna IoTech Cellular 4G LTE IoT RTU Temperature Humidity Alarm Controller can be used in different solutions:

1. Security Alarm System applications;
2. Supervision and monitoring alarm systems;
3. Automatic monitoring system;
4. Vending Machines security protection;
5. Pumping Stations, Tanks, Oil or Water levels;
6. Buildings and Real Estate;
7. Weather Stations;
8. River Monitoring and Flood Control;
9. Oil and gas pipelines;
10. Corrosion protection
11. Temperatures, water leakage applications;
12. Wellheads, boat, vehicle;
13. Energy saving, street lights control system;
14. Valve controls;
15. Transformer stations;
16. Unmanned machine rooms;
17. Control room application;
18. Automation System, M2M;
19. GSM Access Control System, GSM Gate Opener, etc.
